35 Cubic Meters 15tons 15mt 35m3 35000 Litres LPG Filling Station with Gas Dispenser

Product Name: "LPG Filling Station with Gas Dispenser" Description: Our factory offers a complete LPG filling station with a gas dispenser, providing 35 cubic meters (15 tons) of LPG storage for convenient fueling.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
FUYA5112LPGST
Material of Tank
Q345 Q370 Q420 SA516
Accessories
Safety Valve, Ball Valve, Cut off Valve, Levelmete
Option
Pump Motor Compressor Filling Scales LPG Dispenser
Station
Cylinder Filling Station 20 Tons Model
Delivery Time
Within One Month
Warrenty
1 Year
Transport Package
RO-RO, Bulk Shipment
Specification
As need
Trademark
FUYA
Origin
Huibei China
HS Code
7311009000
Production Capacity
3000PCS Per Year for LPG Filling Plant

Product Description

HUEBEI FUYA VEHICLE CO.,LTD
* ASME standard available *
* 100% new condition by manufacturer direct sale *
* 100% quality guaranteed *

I. Details of 35 cubic meters 15tons 15MT 35m3 35000 litres LPG filling station with gas dispenser

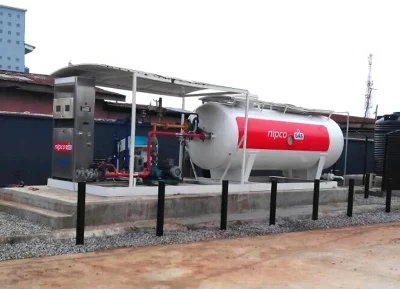

The LPG refilling station is consisted of lpg tank, lpg transfer pump, lpg filling scale, motor, gas hose reel with gun, pressure relief valve, thermometer, pressure gage, etc.

The LPG tank is made of special material Q345R and the lpg filling scale is explosion proof type. Can be equipped with pump, filling gun , Electric filling scale that can auto filling any amount of lpg gas / propane as customer's request. SAFE AND EASY to operate!

As a china lpg vessel manufacturer, we have  the aptitude to design and manufacture A2 type of pressure vessel, C2 type of lpg tank truck, C3 type of LPG tank container.  The lpg storage tank for sale are horizontal lpg tank, vertical lpg tank.

The manufacturing processing of gas cylinder filling station is complex and strict. All the lpg gas tanks must do nondestructive examination, air tight test, hydrostatic test and any other inspections.

Standard configuration:Safety valve, level gauge, pressure gauge, thermometer, emergency shut-off valve, valve boxes, fire extinguishers, fire star cover, antistatic grounding tape, fencing, tires and fenders.

Asme certification: We are qualified to provide asme standard pressure vessel products, if customer needs.
35 Cubic Meters 15tons 15mt 35m3 35000 Litres LPG Filling Station with Gas Dispenser
Features:
a.) Fixed-point procurement of raw material manufacturer
b.) Strictly inspection for incoming material
c.) Vigorous production process
d.) Nondestructive examination / 100% X-ray testing
e.) Water pressure and air tightness testing

f.). Asme certification: We are qualified to provide asme standard pressure vessel products, if customer needs.
35 Cubic Meters 15tons 15mt 35m3 35000 Litres LPG Filling Station with Gas Dispenser

» II. LPG Filling Station Specification :

Similar keys: portable LPG gas tank, portable lpg station, lpg cylinder filling station, portable lpg filling kit, propane filling station, etc.
Parameter of 10000liters propane Gas Storage Tank
ITEM PARAMETER ITEM PARAMETER
Volume 5cbm-15cbm Thickness of Shell 10mm
Tank Material Q345R Thickness of End plate 10mm
Overall Size 5260*1620*2210 mm Tank Net Weight 2950 kg
Tank Diameter 1600mm Loading Capacity 4700 kg
Design Pressure 1.77Mpa Gas Density 420-550kg/M3
Hydraulic Test Pressure 2.22Mpa Corrosion Allowance 1mm
Design Temperature -20ºC~60ºC Heat Treatment Bulk
Vapor Outlet DN50 Gas Outlet DN50
Life time 20 years
Accessories
Model Item Qty Junction surface
J41N-2.5-50 Stop Valve DN50 6 RF
J41N-2.5-25 Stop Valve DN25 2 RF
J41N-2.5-80 Stop Valve DN80 1 RF
J24W-320-DN6 J24W Needle Valve M20*1.5 1
HG21584-95 Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 1 RF
A42F-25-80 Safety Valve DN80 1 RF
Y-100T Pressure Gauge M20*1.5 1.5degree 0~4Mpa 1
WTQ-280 Thermometer M33*2 2.5 degree 1 -40ºC~60ºC

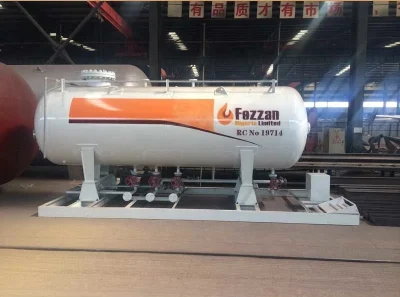

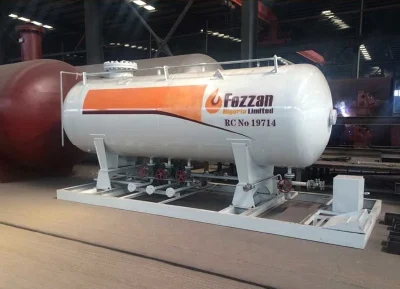

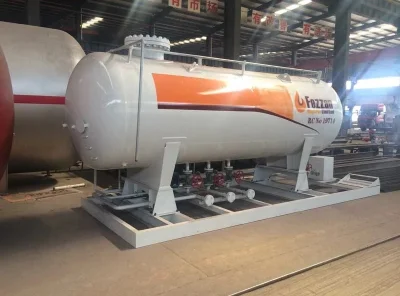

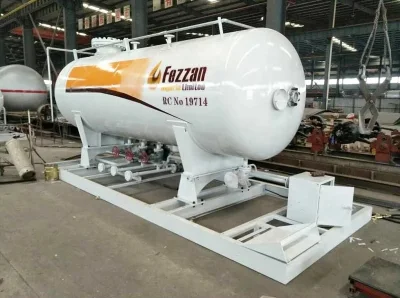

» III. Product Detailes:

35 Cubic Meters 15tons 15mt 35m3 35000 Litres LPG Filling Station with Gas Dispenser
» IV. LPG SERIES
35 Cubic Meters 15tons 15mt 35m3 35000 Litres LPG Filling Station with Gas Dispenser 35 Cubic Meters 15tons 15mt 35m3 35000 Litres LPG Filling Station with Gas Dispenser

» V. Packaging & Shipping:

  • Thick wax polished on products before shipping to protect.
  • Use container, RORO/bulk ship or others as your requirement.
  • We provide transportation insurance to guarantee the new and great condition of products for customers.
35 Cubic Meters 15tons 15mt 35m3 35000 Litres LPG Filling Station with Gas Dispenser
35 Cubic Meters 15tons 15mt 35m3 35000 Litres LPG Filling Station with Gas Dispenser

» VI. ABOUT US

HUBEI FUYA VEHICLE CO.,LTD  is an authorized special truck manufacturer which has many years in design ,product ,sales and service in special trucks like as boom truck , fire truck, manlift truck, tank truck , garbage truck, tipper truck , wrecker truck , refrigerated truck and etc. Main info as below:

35 Cubic Meters 15tons 15mt 35m3 35000 Litres LPG Filling Station with Gas Dispenser

Our Service

1. One year quality warranty for key parts such as axles, engine, transmission;
2. All spare parts would be OEM and supplied at cost prices;
3. Overseas service center to ensure efficiency after-sales service;
4. Regular after-sales visit to collect information about the vehicle's working status and feedback from customers.


Our advantage:
(1) More than 500 workers, large and advanced production;
(2) 25 professional engineers, can offer the best and cheapest design;
(3) Build strict QC team to guarantee the quality;
(4) 1 year or 30,000km warranty which comes first.
(5) One set of spare parts of chassis provided which will help you save money on maintenance.
(6) Provide technical support and after serive for life.
(7) Professional sales team which will help you to choose suitable truck.


FAQ
1. Q: What's the brand of your truck?
    A: Our brand is CLW, First it is the biggest truck manufacture in China, our  products cover all series such as tractor truck, tipper truck, cargo truck, and other special trucks.

2. Q: How can we trust your company?

   A: We are the official authority company by HUBEI FUYA VEHICLE Co., Ltd.  And we are registered in the Commercial Department of China, with the whole qualification for exporting, you would feel relax and safe to do business with us.We are your reliable partner.

3. Q: Can u provide the ISO9001 certificate or some others related?
    A: Yes. We have been exporting trucks for years. Rich experience for exporting to different countries, African market, Russia, South America, this help us better know have to handle with different certificates needed.

4. Q: How about warranty item?
   A: We could support u original spare parts. And also email or telephone assist in the  following days. If necessary, for large quantity ordered, our engineer could  go for technical assist.

5. Payment:
   30%-50 deposit after order confirmation,  balance should be paid before delivery. All by T/T, L/C.


Welcome to contact with us for more info. We will offer you the best truck as we can .
