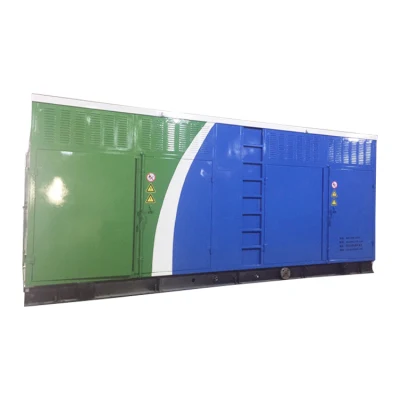

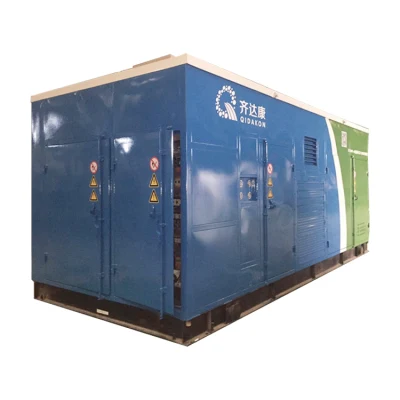

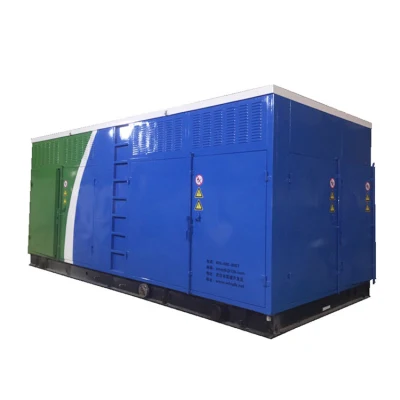

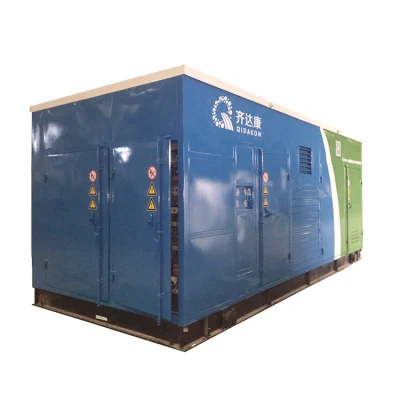

High Quality Natural Gas Recovery and Treatment Unit for Well Gas Field

Find top-of-the-line natural gas recovery and treatment units for well gas fields at our factory. High quality and reliable solutions for all your gas processing needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Company Profile
  • Our Advantages
  • Certification and Honor
  • Partner & Cases
  • After Sales Service
  • FAQ
Overview

Basic Info.

Model NO.
YC1000-44
Structure Type
Closed Type
Compress Level
2 Stages
Inlet Pressure
3-20MPa
Outlet Pressure
25MPa
Treatment Capacity
20000nm3/D
Transport Package
Export Packing
Specification
L6.6M*W3M*H3M
Trademark
QIDAKON
Origin
China
HS Code
84148040
Production Capacity
12sets /Month

Product Description



Product Description

Product function: It's suitable For low-efficiency wells, test wells and remote wells wellhead natural gas recovery, local production of CNG. finished products The dry gas recovery skid can adapt to the characteristics and working conditions of well gas, the installation is simple, the period is short, and it is convenient for the rapid transfer of equipment.

The equipment flow diagram is as follows:

To better adapt to the field conditions of well gas recovery, the air intake separation system uses a high pressure separator to separate the gas and liquid level, using a liquid level controller to automatically control the liquid level; the pressurization system uses a hydraulic piston compressor, which can meet the intake pressure range of 3-20 MPa. Pressurization to 25 MPa, is more energy-efficient and leak-free than traditional mechanical pressurization, with low failure rate, high reliability and simple maintenance; the drying system adopts the A,B tower molecular sieve mode, which can be dried and regenerated simultaneously, with a maximum drying capacity of 2000 Nm3h, dew point is -55ºC; the control system is controlled by PLC logic control program to control each process such as separation, pressurization, drying, metering, instrument wind and so on, to realize unattended, automatic opening / stopping control; The filling metering system adopts mass Flowmeter, which meets the requirements of the state on metering, measuring range :1~4000 N m3/ h.


High Quality Natural Gas Recovery and Treatment Unit for Well Gas FieldApplication and parameter:
1.Gas intake separation system 2.Supercharging system 3.Drying system 4.Control system

5.Filling metering system 6. Fuel gas supply system 7. Housing system

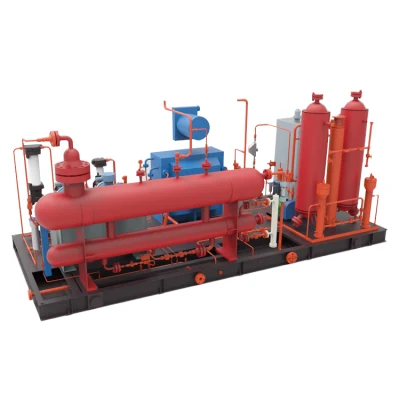

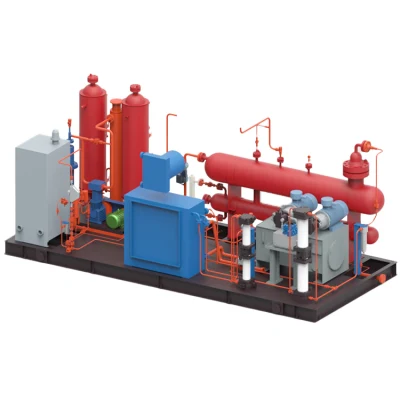

Structure skid
Suction pressure 3-20Mpa
Discharge pressure 25Mpa
Gas treated ( Nm3/d) 10000-20000
Amount of treatment (t/d) 20
Main motor power 44kw
Noise  ≤75dBa
Size 6600mm*3000mm*3000mm
Total power 70KW
Fuel tank (L) 600
Scope of measurement (Nm3/h) 1-4000
Weight ≈18t




High Quality Natural Gas Recovery and Treatment Unit for Well Gas FieldHigh Quality Natural Gas Recovery and Treatment Unit for Well Gas FieldHigh Quality Natural Gas Recovery and Treatment Unit for Well Gas Field Product Advantage:
1. Skidding, high degree of integration, good flexibility, short construction period.
2.High degree of automation, centralized control points, low labor intensity.
3. Compressor adopts hydraulic piston type, which has the characteristics of wide intake range, energy saving, no leakage, very low failure rate and simple maintenance, so it can better adapt to the characteristics of large variation of wellbore pressure range.
4. No need to be equipped with water jacket furnace and pressure regulating equipment, safety risks are small, no throttling energy waste.
5.Use high pressure post dehydration, dehydration effect is good, conducive to product sales.
6. Recovery process equipment has strong adaptability to wellhead pressure and components, and the equipment input cost is small.

Company Profile

High Quality Natural Gas Recovery and Treatment Unit for Well Gas Field

    Wuhan Qidakon Energy Equipment Co., Ltd was established in 2007 in Wuhan, Hubei Province, with a plant covering an area of 18,000 square meters. We are specializing in the R&D, production and sales of natural gas compressor series products, we adhere to the professional, fine, specialty, brand development of the road, to provide customers with the best overall technical solutions of high-tech enterprises. Professional production and manufacturing of natural gas compressor for CNG filling station and its service, professional production and manufacturing of natural gas compressor for oil and gas field natural gas extraction, recovery, gathering and transportation, storage and transportation and after-sales service, products and services have covered the CNG market all over the country and major domestic oil and gas fields, and radiation to Russia, India and other Belt and Road foreign markets.
     Qidakon company has always been committed to technological innovation. Its core business team has more than 30 years of working experience in compressor design and manufacturing, and led the drafting of the industry standard for hydraulic natural gas compressors for automobile filling stations (JB/T11422-2013). Obtained nearly 100 national patents, won the national technology innovation fund, and the first in the industry through the whole machine safety explosion-proof certification, by the Ministry of Science and Technology technology innovation fund committee identified as the national technology innovation products, with its "safety, energy saving, environmental protection, investment province, simple structure and many other advantages, in more than 20 provinces (autonomous regions) used, Market share is among the best, its technical advancement, reliability, economy and industry leading position by the national attention.

 Qidakon adheres to the enterprise mission of "gas melts everything, the way to secure the world", adheres to the business philosophy of "customer first and sustainable development", forms the core values of "loyalty and dedication, innovation and transcendence, truth-seeking and honest, fair sharing" and the enterprise spirit of "persistence, cooperation, gratitude, tolerance, dedication", and is determined to become a global well-known brand of gas supercharging system.




Our Advantages

Professional R&D Team

High Quality Natural Gas Recovery and Treatment Unit for Well Gas Field
High Quality Natural Gas Recovery and Treatment Unit for Well Gas Field



About 100 technical patents


High Quality Natural Gas Recovery and Treatment Unit for Well Gas Field
High Quality Natural Gas Recovery and Treatment Unit for Well Gas Field
High Quality Natural Gas Recovery and Treatment Unit for Well Gas Field

Industry standard setter

The national industry standard JB/T 11422-2013 setter, Hydraulic Natural Gas Compressor for Automobile Filling Station, drives the technical progress of the industry and leads the development direction of the industry.

Advanced production workshop and strict production process

     Sapare parts area                                                                                                                                                              Welding

High Quality Natural Gas Recovery and Treatment Unit for Well Gas Field
High Quality Natural Gas Recovery and Treatment Unit for Well Gas Field




     Assemble skiding                                                                                                                     Pre-factory commissioning

High Quality Natural Gas Recovery and Treatment Unit for Well Gas Field
High Quality Natural Gas Recovery and Treatment Unit for Well Gas Field




   Strict quality control process and testing


High Quality Natural Gas Recovery and Treatment Unit for Well Gas Field
High Quality Natural Gas Recovery and Treatment Unit for Well Gas Field



Certification and Honor

High Quality Natural Gas Recovery and Treatment Unit for Well Gas Field
High Quality Natural Gas Recovery and Treatment Unit for Well Gas Field



High Quality Natural Gas Recovery and Treatment Unit for Well Gas Field
High Quality Natural Gas Recovery and Treatment Unit for Well Gas Field

Partner & Cases

High Quality Natural Gas Recovery and Treatment Unit for Well Gas Field       CNG refueling station site

High Quality Natural Gas Recovery and Treatment Unit for Well Gas Field
      Indian partner

High Quality Natural Gas Recovery and Treatment Unit for Well Gas Field
High Quality Natural Gas Recovery and Treatment Unit for Well Gas Field


After Sales Service

Service Purpose: Cusomer's Satisfaction Our Pursuit

Pre- Sale Services
Provide installation and commissioning training for customer operators according to customer requirements. At the same time, organize and register product information and set up customer files.

Services on sale
The prodessional technical service engineer guides the installation and commissioning on the side or on the line. Andwarning of the possible failure of the equipment.

After-Sales Service
Timely and rapid response ,24-hour on-line service, provide lifelong maintenance.


FAQ

1.How long is the lead-time of production?

    30-60Days.

2. What is the configuration of the whole skid equipment?
   According to different customer needs to do the country's explosion-proof certification and industry certification.

3.Which sea ports are supported for shipment?
  Shanghai,Qingdao or Other international ports in China.

4.What payment methods are supported?
  T/T, LC, D/P D/D ect.

5.What technical support is available?
   We provide basic parameters for customers' reference before sales; conduct relevant certifications according to customers' requirements during sales; be responsible for online debugging until successful operation after sales; arrange technicians to provide on-site guidance when necessary.

6.How long is the warranty period?

   For a period of 12 months from the date of commissioning at end customer site or 15 months from the date of receipt by purchaser , whichever is earlier.
