Advanced Pyrolysis Technology Wood Sawdust Coconut Shell Biochar Pyrolysis Equipment

Discover the benefits of our Advanced Pyrolysis Technology Wood Sawdust Coconut Shell Biochar Pyrolysis Equipment. We are a factory committed to superior quality and performance.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Working Principle
  • Applications
  • Device Configuration
  • Product Parameters
  • FAQ
  • Company Profile
Overview

Basic Info.

Model NO.
JTTJ3612/2
Dimension(M)
11*2.0*2.8-14.0*4.2*5.5
Power(Kw)
40-230
Voltage
380V
Host Rpm (Revolutions Per Minute)
3-5
Material
Stainless Steel, Refractory
Raw Material
Wood Sawdust, Rice Husk, Crops Straw, Jute Sticks
Usage
Making Charcoal
Feeding Way
Automatic Frequency Conversion Feeding
Equipped with
Cooling Discharging Machine
Control Cabinet
PLC Automatic Control Cabinet
Production Status
with Carbonized Color Display
Transport Package
Container
Origin
Henan, China
Production Capacity
500 Sets/Year

Product Description

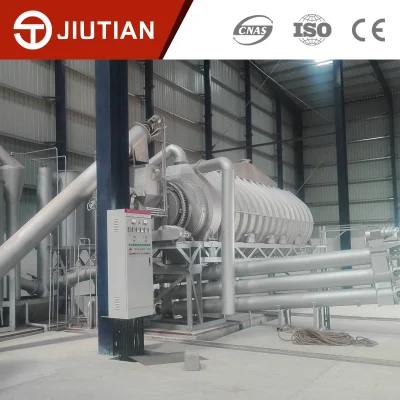

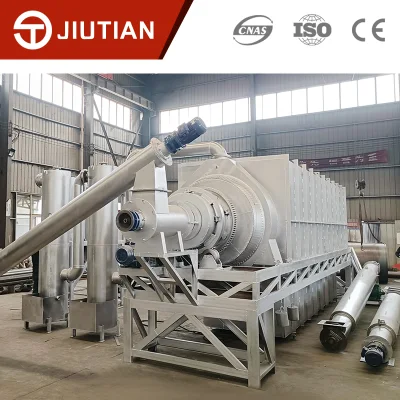

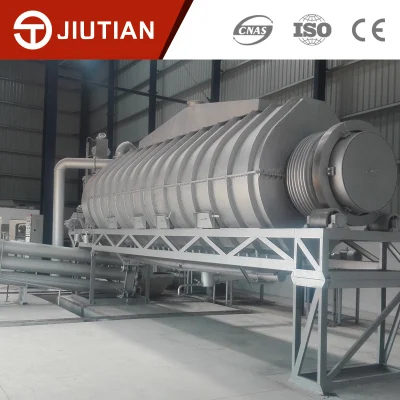

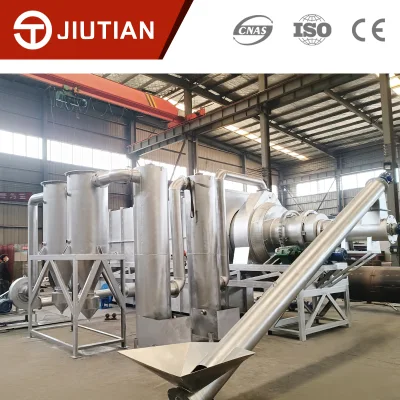

Biomass Pyrolysis Plant

Product Description

Biomass charcoal-making machine uses the most advanced pyrolysis carbonization technology to convert biomass into charcoal. Biomass pyrolysis equipment (two-layer continuous drum carbonization machine) is a process that combines coconut shells, walnut shells, apricot shells, hemp rods, sawdust, sawdust, rice husks, bamboo, eucalyptus, fungus residues, medicinal residues, furfural residues, and coffee grounds. It is special pyrolysis equipment for dry distillation and oxygen-free carbonization of carbon-containing small particle wood materials such as palm shells, peanut shells, and sunflower seed shells under high-temperature conditions pyrolysis machine.


Advanced Pyrolysis Technology Wood Sawdust Coconut Shell Biochar Pyrolysis Equipment

Working Principle

Biomass Pyrolysis Machine Process

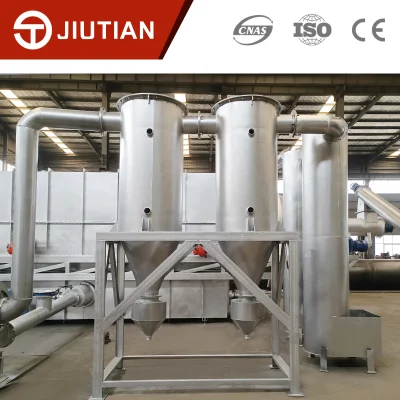

Biomass pyrolysis machine (two-layer continuous drum carbonization machine) is a professional pyrolysis equipment for continuous high-temperature heating and carbonization of biomass under anaerobic and oxygen-deficient conditions. Or gasification furnace, natural gas burner), combustible gas purification device, carbonization machine external heating furnace, feeding conveyor, cooling charcoal machine and control, etc. Decarbonization. The biomass is transported by the conveyor into the inner drum, and the waste heat in the furnace is used to dry and preheat the material to 200-250 °C, and then enter the outer drum for high temperature carbonization. Carbon monoxide, methane, ethane and other combustible gases produced in the carbonization process are separated from wood tar, wood vinegar, water and ash through the flue gas purification system to obtain pure combustible gases. The air is sent to the external heating furnace of the carbonization machine for full combustion , to heat the carbonization machine to achieve reciprocating cycle heating carbonization and continuous production. The carbonization temperature is generally controlled at /700-800 °C. , natural gas burners) to supply heat. After biomass pyrolysis, customers can get biomass charcoal, tar, wood vinegar and combustible gas from the charcoal production line.

Advanced Pyrolysis Technology Wood Sawdust Coconut Shell Biochar Pyrolysis Equipment


Applications

This machine is suitable for all kinds of powder particles biomass carbonization forestry agriculture. Such as sawdust, wood chip, bamboo, coconut shell, cherry shell, jujube, walnut shell, apricot shell shell shell, peanut shell, rice husk, cotton stalk, straw, the bean curd, etc.

Advanced Pyrolysis Technology Wood Sawdust Coconut Shell Biochar Pyrolysis Equipment

End Products
Advanced Pyrolysis Technology Wood Sawdust Coconut Shell Biochar Pyrolysis Equipment



Device Configuration

Environmentally friendly Biomass Pyrolysis Machine, the use of carbonized flue gas purification into combustible gas generated in combustion itself, recycling to use, it can 24 hours of continuous production, has zero pollution, zero-emission, save labor, high capacity, energy-saving consumption, the advantages of the high degree of automation, advanced technology, which is suitable for large-scale production, with high carbonation rate, high carbon production rate, energy saving, environmental protection, high-efficiency advantages.

Product Parameters



  Other Related Biomass Pyrolysis Machine Specification:


Model Capacity(kg/h) Power(kw) Dimension(m) Inner Layer Diameter(mm) Outer Layer Diameter(mm) Drum Length(m)
JTTJ1610/2 600-800 40-50 11*2.0*2.8 1000 1600 10
JTTJ1810/2 700-1000 50-70 11*2.2*3.0 1200 1800 10
JTTJ2010/2 1100-1300 70-80 11*2.5*3.3 1400 2000 10
JTTJ2312/2 1500-2000 90-110 13.5*2.8*3.6 1600 2300 12
JTTJ2512/2 2200-2500 110-130 13.5*3.0*4.0 1800 2500 12
JTTJ2912/2 2700-3000 130-150 13.5*3.5*4.5 2200 2900 12
JTTJ3212/2 3300-3800 160-180 14.0*3.8*5.0 2500 3200 12
JTTJ3612/2 4000-4500 200-230 14.0*4.2*5.5 2900 3600 12



FAQ

Q1. What is the MOQ?

1 set.

Q2Can I have different models at different prices
Yes. There are different models according to different raw materials and different capacities.

Q3Which areas do you serve?
We have a very big market in China local market, at the same time, we have exported our carbonization furnace all over the world, including Europe, Africa, Middle-East, Asia, North America South America and so on, total more than 30 countries in the world.

Q4. How long is the quality guarantee
One year.



Company Profile

Zhengzhou Jiutian Machinery Equipment Co., Ltd. is a comprehensive enterprise with research, design, manufacture, sales, and service in the drying industry. The company has 8 series of equipment such as dehydration series, drying series, carbonization series, crushing series, granulation series, conveying series, environmental protection series, and electronic control equipment, and has more than 150 kinds of high-tech products.

More than 300 customers from Southeast Asia, Central Asia, Eastern Europe, Africa, and South America came to our company for smooth communication. Most of our customers are very satisfied with the solutions and services we provide.
