50L 200bar ISO Tped High Pressure Vessel Seamless Steel Oxygen with Cga540 Valve Gas Cylinder

Get the 50L 200bar ISO TPED High Pressure Vessel Seamless Steel Oxygen Gas Cylinder with CGA540 Valve from our factory. High-quality and reliable gas cylinder for industrial use.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
50L
Condition
New
Model No.
ISO9809
Water Capacity
50L
Outside Diameter
232mm
Working Pressure
200bar
Test Pressure
300bar
Height
1450mm
Weight
51±1kgs
Cap
Common Cap or Tulip Cap or Semi-Circle Cap
Package
Pallet or Bulk
Specficition
ISO/Tped
Wall Thickness
5.2mm
Base Profile
Concave
Neck Ring
with
Color
Customize
Inlet Thread
Customize
Transport Package
Netting/ Pallet
Specification
232*1425
Trademark
YA
Origin
Linyi Shandong
HS Code
7311009000
Production Capacity
20000PCS/ Month

Product Description

1.Product description
Water Capacity 50L
Cylinder Weight 51kg
Outside Diameter 232mm
Service Pressure (Bar) 200bar
Test Pressure(Bar) 300bar
Certification TPED/ISO9809
Head Protection Tulip Cap, Common Cap
After-Sales Service Provided Overseas Third-Party Support Available
Brand Name YA

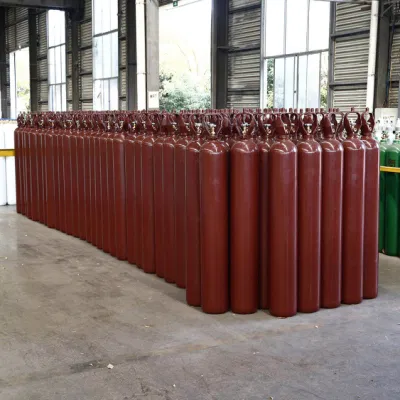

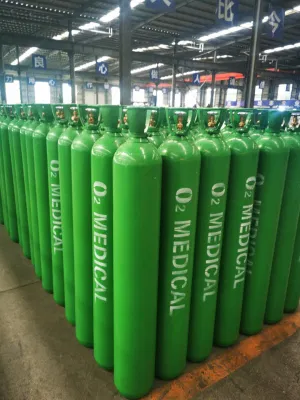

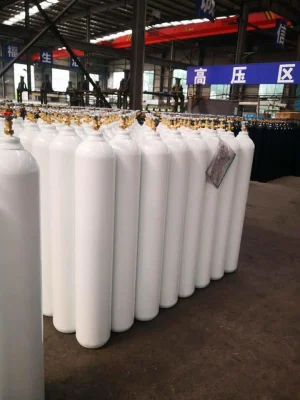

2.Product picture

50L 200bar ISO Tped High Pressure Vessel Seamless Steel Oxygen with Cga540 Valve Gas Cylinder
50L 200bar ISO Tped High Pressure Vessel Seamless Steel Oxygen with Cga540 Valve Gas Cylinder 50L 200bar ISO Tped High Pressure Vessel Seamless Steel Oxygen with Cga540 Valve Gas Cylinder

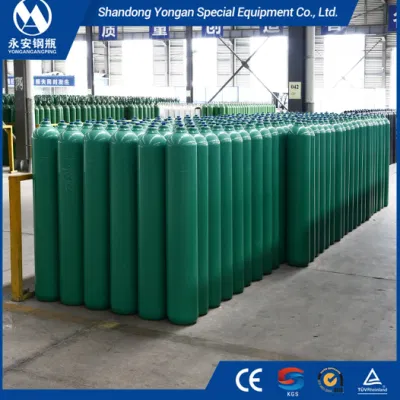

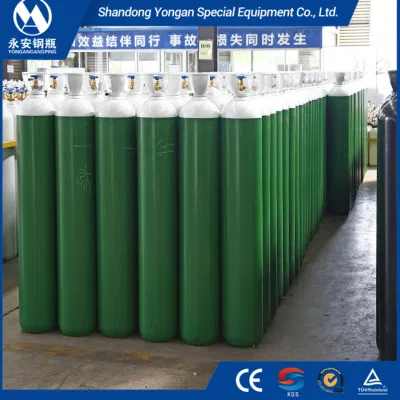

3.Company  Profile
50L 200bar ISO Tped High Pressure Vessel Seamless Steel Oxygen with Cga540 Valve Gas Cylinder 50L 200bar ISO Tped High Pressure Vessel Seamless Steel Oxygen with Cga540 Valve Gas Cylinder 50L 200bar ISO Tped High Pressure Vessel Seamless Steel Oxygen with Cga540 Valve Gas Cylinder 50L 200bar ISO Tped High Pressure Vessel Seamless Steel Oxygen with Cga540 Valve Gas Cylinder 50L 200bar ISO Tped High Pressure Vessel Seamless Steel Oxygen with Cga540 Valve Gas Cylinder 50L 200bar ISO Tped High Pressure Vessel Seamless Steel Oxygen with Cga540 Valve Gas Cylinder 50L 200bar ISO Tped High Pressure Vessel Seamless Steel Oxygen with Cga540 Valve Gas Cylinder 50L 200bar ISO Tped High Pressure Vessel Seamless Steel Oxygen with Cga540 Valve Gas Cylinder 50L 200bar ISO Tped High Pressure Vessel Seamless Steel Oxygen with Cga540 Valve Gas Cylinder

Type Outside
diameter
(mm)
Water
capacity
(L)
Height
(mm)
Weight
(kg)
Service
pressure
(bar)
Test
pressure
(bar)
Design wall
 thickness
(mm)
Material
WGA-232
(TPED)
232 38 1110 40.2 200 300 5.2 34CrMo4
40 1165 42.1
45 1295 46.3
46 1320 47.1
46.7 1335 47.6
47 1345 48
50 1425 50.6
