Diesel Engine Driven Water Pump

Get reliable and powerful Diesel Engine Driven Water Pumps from our factory. Perfect for industrial and agricultural applications. Contact us today!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
SW
Drive Mode
Electric Motor and Diesel Engine
Transmission Type
Direct Connection and Belt Pulley Connection
Seal
Mechanical Seal
Description
Diesel Engine Water Pump
Flow Rates
8m3/H-1275m3/H
Head
6m-63m
Suction Lift
6-7m
Solid Size
76.2mm
Impeller
Semi-Open
Transport Package
Export Polywood Case
Specification
CE, SGS, ISO9001
Trademark
Sundream
Origin
Shanghai
HS Code
8413709990
Production Capacity
100000 PCS/Year

Product Description

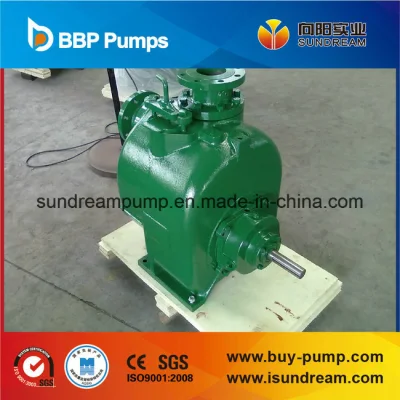

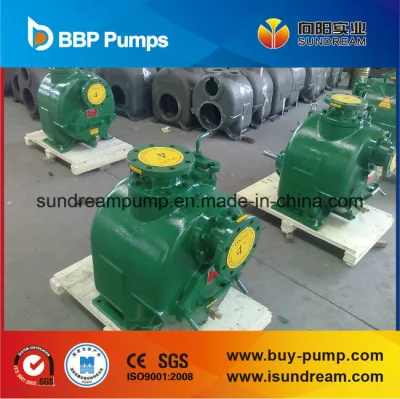

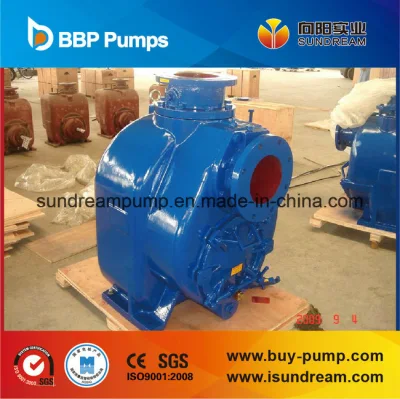

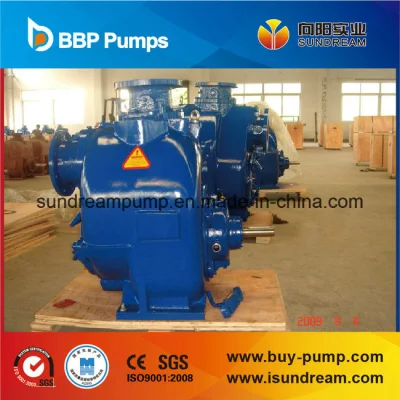

Diesel Engine Driven Water Pump is widely used for mine dewatering application, mainly used for handling big solids with large capacity, it is very good model in every industry.


SW & SWH series self priming water pump is our latest generation product base on the latest technology and craftwork. It is designed for economical & trouble-free operation in handling solid-laden liquids and slurries.
Its known as King of Self-priming Sewage Pump, and the most idea new-generation sewage product.

1. Stable performance, reliable operation;
2. Rapid self-priming, high suction head;
3. Back-pull-out construction: Convenient for maintenance and trouble shooting. Daily maintenance can be performance rapid by common head tools, saving time and labor;
4. Semi-open impeller structure and non-clogging design: Strong passing capacity, Diameter of maximum solid handling is 76.2mm;
5. Convenient usage: The pump can be mounted high and dry at floor level, with only the suction line down in the liquid. (the pump shall be filled with water for first start);

Unique advantage: Very competitive price, high quality, largest China self priming trash pump manufacturer, small MOQ, fast delivery, OEM required, CE, ISO9001: 2008 certification, exporting plywood case.

Application:
1. Municipal Project, Sewage Project, Instruction Project;
2. Transportation of the sewage of uptown;
3. Sewage transportation in Hospital, hotel, slaughter house, fish breeding;
4. Classification of municipal sewage treatment factory and concentrate treatment systems engineering;
5. Transportation of the factory and contaminated water;
6. Sewage and deposit of water purifying system;
7. Industrial sewage of light industry, paper mill, textile, food prpcessing plant, chemical industry, electric utility, deep mines, etc;
8. Wine and sugar industry;
9. Irrigation, flood protection, wastewater, sewage treatment, dewatering, industrial, construction, petroleum etc.

Features: Solids Handling Impeller, Exclusive Abrasion-Resistant Seal, Removable Cover Plate with Easy-Grip Handle, Replaceable Wear plate, Removable Rotating Assembly.

Specification:
1. Inlet/Outlet: 2''(50mm), 3''(80mm), 4''(100mm), 6''(150mm), 8''(200mm), 10''(250mm), 12''(300mm)
2. Impeller Diameter: 158.74mm-457.2mm
3. Rotary Speed: 550RPM-2150 RPM
4. Flow Rates: 8m3/h-1275m3/h20GPM-5500GPM
5. Head: 6m-63m
6. Horsepower: 1HP-125HP
7. N. W: 92KG-998KG
8. G. W: 114KG-1066KG
9. Solid Passing: 20.63mm-76.2mm
10. Material: Cast iron, ductile iron, stainless steel, cast steel, aluminum, bronze
11. Diesel Driving: Water cooled or air cooled
12. Method of Connection: Self-priming pumps are available as basic units or may be flex-coupled, V-belt driven or engine mounted.
13. Drive Variation: Cummins, Deutz, Ricardo, Chinese Diesel, Electric Motor
14. Skid Mounted on Trailer2 wheels or 4 wheels Trailer/Trailer

We can design the complete heavy duty self priming solid handling pump sets as per customers demand. We can equip pump with diesel engine, electric motor, trailer, removable fuel tank built in base, canopy etc.
selection Chart and Performance
item no model flow(m3/h) head(m) power(kw) speed(rpm) inlet/outlet(mm) weight(kg)
1 sw-2 0-45m3/h 0-40M 1kw-15kw 1150rpm-2900rpm 2" 92kg
2 sw-3 0-110m3/h 0-40M 1kw-25kw 650rpm-2150rpm 3" 183kg
3 sw-4 0-180m3/h 0-40M 2kw-45kw 650rpm-1950rpm 4" 280kg
4 sw-6 0-350m3/h 0-40M 2kw-55kw 650rpm-1550rpm 6" 391kg
5 sw-8 0-650m3/h 0-40M 5.5kw-90kw 650rpm-1500rpm 8" 634kg
6 sw-10 0-800m3/h 0-50M 7.5kw-120kw 650rpm-1500rpm 10" 663kg
7 sw-12 0-1300m3/h 0-50M 18.5kw-145kw 650rpm-1500rpm 12" 1066kg
8 swh-3 0-90m3/h 0-60M 2kw-30kw 850rpm-2150rpm 3" 225kg
9 swh-4 0-160m3/h 0-60M 3kw-50kw 850rpm-2150rpm 4" 297kg
10 swh-6 0-300m3/h 0-60M 5kw-90kw 850rpm-1950rpm 6" 437kg
for more detailed specification and performance data , please contact us directly by email or call.
