Dt Series Desulphurization Pump Anti-Corrosive Pump

Looking for a reliable desulphurization pump? Our factory specializes in producing anti-corrosive pumps, including the Dt Series Desulphurization Pump. Visit us now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
DT
Position of Pump Shaft
Horizontal Pump
Pump Casing Combined
Horizontal Split Pumps
Mounting Height
Suction Centrifugal
Impeller
Closed
Usage
Pump, Pumps, Condensate Pump, Slurry Pump, Circulating Pump
Material
High Chrome Alloy or Natural Rubber
OEM
Yes
Factory
Yes
Name
Desulphurization Pump
Seal Form
Packing Seal, Expeller Seal, Mechanical Seal
Transport Package
in Wooden Case or as Your Requirement
Specification
25-800
Trademark
boda
Origin
China
HS Code
8413709990
Production Capacity
500 Sets/ Month

Product Description

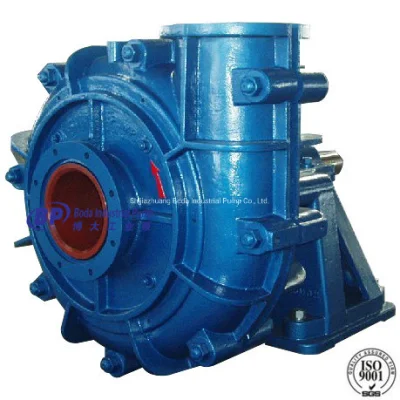

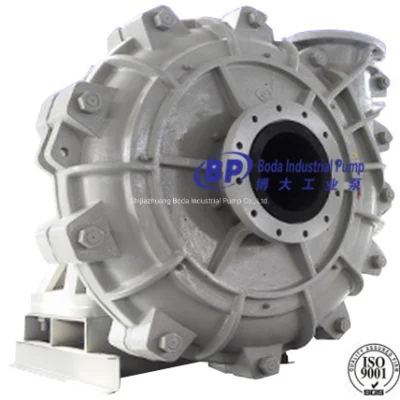

Dt Series Desulphurization Pump Anti-Corrosive Pump Dt Series Desulphurization Pump Anti-Corrosive Pump

DT series Desulphurization Pump

1, Production Overview:

The FGD pump restricting parts adopt the advanced flow simulation technology to guarantee the reliable pump design and the high operating efficiency.
The anti-corrosion & anti-wear metal and rubber materials which are specifically developed for FGD pumps have been proved by the practice that they can ensure the long-life pump operation. Through adjusting the bearing components to change the impeller position in the pump chamber all-time high-efficient operation of the pump can be achieved. The pump is characterized by the back knock-down structure which is simple and advanced.
It is easy to maintain and repair and it is on need dismantling inlet and outlet water pipes. The containerized mechanical seal specially used for the desulphurization process is adopted and its operation is reliable

2, Main Features:

A) The wet parts adopt the advanced flow simulation analysis in the design process to guarantee the reliable performance, high efficiency of the pumps. The customer can make the pump always running in an efficient operation state by adjusting the bearing components in the pump impeller to suit the cavity position of the pump.

B) The pumps are designed with rear-assemblage structure system. They are featured by easy structure and it is easy to repair without dismantling the inlet and outlet pipe of the pump. End bearing adopts imported tapered roller bearings and driving end uses two cylindrical roller bearings with thin oil lubrication. It can promote the bearings? ? Working condition to prolong the service life of bearings.

C) Mechanical seal is designed according to the structure characteristic of desulphurization pump, slurry characteristic and the application characteristic. It is cartridge mechanical seal. It has good performance, long service life.

D) The FGD (Flue Gas Desulfurization) equipment of the pump is made of a new type of material B49 duplex stainless white iron which is specially developed by our company itself. The new material has significant corrosion-resistant and wear-resisting performance. The pump, pump cover and splice plates are pressure parts and made of ductile cast iron. The impeller and suction cover is made of the B49 dual-phase stainless white iron. The material of cover plate liner, frame plate liner, and rear liner is natural rubber with natural good abrasion performance, light weight, relatively low cost.

3, Main Usages:
It is mainly applied in the power plant for the absorption tower circulation pump to transmit corrosive slurry.
Power plant, steel plant for flue gas desulphurization.

4, Technical Data:
Model Allowable mating max power   Flow Head Speed Max Efficiency NPSH Allowable  max partical Pump Weight
Q(m3/h) H(m) n(r/m) T(kg)
N(kw)       η(%) (m)  (mm)
800DT-A90 900 3142-9700 6.0-28.7 300-592 89.3 2 181 5900
700DT-A84 630 2157-7360 5.2-24.5 300-591 88.8 2.0  168 5420
600DT-A82 500 1664-5600 5.2-27.8 300-595 88.3 2.2 152 4900
500DT-A85 400 1036-4080 5.7-26.8 300-591 84.7 3.1 135 4500
350DT-A78 500 720-2865 11.6-51.1 400-740 78 3.5 104 3700
300DT-A60 400 580-2403 8.9-53.1 490-989 81.1 4.3 96 2790
200DT-B45 90 138-645 5.7-31.0 490-990 80.8 2.0  51 1750
150DT-B55 132 139-630 11.3-53.7 490-990  78.1 2.3 56 1540
150DT-A50 90 62-279 9.3-44.6 490-980 65.7 2.1 30 1470
150DT-A50 90  63-279 9.3-44.6  490-990  65.7  2.1 30 1470
150DT-A40 132 122-503 11.2-61.2 700-1490 73.1 2.6 40 830
100DT-A45B 90 41-219 12.1-76.4 700-1480 51.8 2.4 24 800
100DT-B40 75 61-268 12.0-61.0 700-1480  70.4 1.7 29 620
100DT-A35 75  77-323 8.8-45.9 700-1480 70.4  1.9 42 550
80DT-A36 37 41-167 8.9-47.1 700-1480  62.4 1.5 16 480
65DT-A40 55 34-159 12.2-63.2 700-1480  62.1 2.1 16  490
65DT-A30 22 21-99 7.0-35.6 700-1470 54.6 2.2 19 260
50DT-D40 30 16-76 9.5-51.7 700-1480  45.1 1.2 10 320
50DT-A30 18.5 16-78 6.1-36.3 700-1460 48.5 0.8 16 210
40DT-A25 45 16.8-74.7 13.7-88.6 1400-2950 42.5 2.6 9 185
40DT-B20 15 7.9-37.1 10.7-57.5 1400-2930 53 0.9 7 160
40DT-A19 15 7.8-34.9 12.3-57.1 1400-2930 58.8 1.2 11 173
40DT-A17 7.5 4.6-23.4 9.2-44.6 1400-2900 52.4  2.5 11 127
25DT-A25 4 4.7-19.9 3.3-21.6 700-1440 38 3.3 5 107
