Fully Welded Compabloc Heat Exchanger for Heat Recovery, Cooling, Condensation, Reboiling in Gas Sweetening

Get the best fully welded Compabloc heat exchanger for gas sweetening at our factory. Perfect for heat recovery, cooling, condensation, and reboiling.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
HT
Material
Stainless Steel
Design Pressure
Fv~3.2MPa
Design Temperature
-20~350 Deg C
Plate Thickness
0.8~1.2 mm
Plate Spacing
8~10 mm
Plate Material
304L/316L/904L/254smo
Transport Package
Wood
Specification
Max. 2000 square meter
Trademark
SHPHE
Origin
Shanghai, China
HS Code
84195000
Production Capacity
1000 Pieces/Year

Product Description


PRODUCT INTRODUCTION

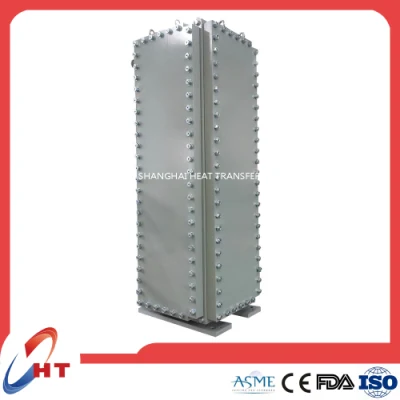

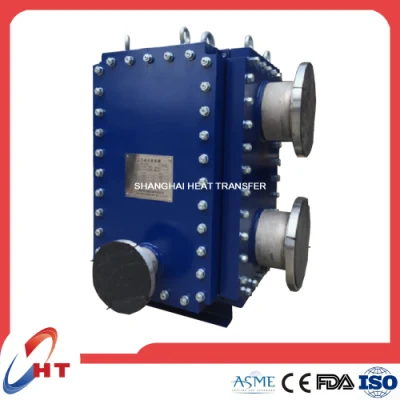

HT-Bloc is made up of plate pack and frame. The plate pack is certain number of plates welded together to form channels, then it is installed into a frame, which is formed by four corner girders, top and bottom plates and four side panels. The frame is bolted connected and can be easily disassembled for service and cleaning. There are three different plate patterns, corrugated, studded, and dimpled pattern, to meet different process requirements.
Fully Welded Compabloc Heat Exchanger for Heat Recovery, Cooling, Condensation, Reboiling in Gas Sweetening

WORKING PRINCIPLES
The cold and hot media flow alternately in welded channels between the plates. Each medium flows in a cross-flow arrangement within each pass. For multi-pass unit, the media flow in countercurrent. The flexible flow configuration makes both sides keeping the best thermal efficiency. And the flow configuration can be rearranged to fit the change of the flow rate or temperature in the new duty.

Fully Welded Compabloc Heat Exchanger for Heat Recovery, Cooling, Condensation, Reboiling in Gas Sweetening

ADVANTAGES
The plate pack is fully welded without gasket;
The frame can be disassembled for repair and cleaning;
Compact structure , high thermal efficient and small footprint;
The unique design of π angle TM prevent "dead zone ";
The butt welding of plates avoid risk of crevice corrosion;
The flexible flow configuration can ensure consistent high thermal efficiency;
Short flow path fit low-pressure condensing duty and allow very low pressure drop.
A variety of flow form meets all kinds of complex heat transfer process.





FEATURES
Design Temperature/ºC -20~350
Design Pressure/MPa FV~3.2
Area/m2 1.4~860
Plate Spacing/mm 8~10
Plate Thickness/mm 0.8~1.2
Model BC20/BC40/BC60/BC75/BC120
Plate Material 304L,316L,904L,254SMO


APPLICATIONS
1.Refinery
Pre-heating of crude oil
Condensation of gasoline, kerosene, diesel, etc.
2.Natural gas
Gas sweetening, decarburization --lean/rich solvent service
Gas dehydration -- heat recovery in TEG systems
3.Refined oil
Crude oil sweetening -- edible oil heat exchanger
4.Coke over plants
Ammonia liquor scrubber cooling
Benzoilzed oil heating, cooling
5.Refine sugar
Mixed juice, fumigated juice heating
Pressure mooring juice heating
6.Pulp and paper
Heat recovery of boil and fumigation
Heat recovery of bleaching process
Washing liquid heating
7. Fuel ethanol
Lees liquid to fermented liquid heat exchange
Pre-heating of ethanol solution
8.Specialty chemicals, Metallurgy, Fertilizer production, Chemical fiber, Water treatment plant, etc.
